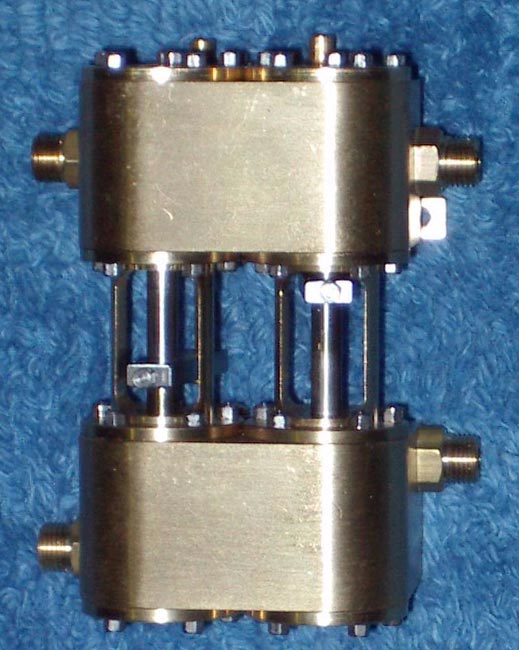

Two Cylinder Water Pump
1.125" scale
| Overall height | 3 5/16" (84mm) |
| Width | 2" (50mm) |
| Thickness | 1 5/8" (41mm) |
| Steam cylinder diameter | 5/8" (16mm) |
| Water cylinder diameter | 7/16" (11mm) |
| Stroke | 3/4" (19mm) |
| Working pressure | 50 - 110 psi |
Complete with fittings for 3/16" diameter copper pipe
Fully operational
Self starting
Reliable
These pumps have been successfully in production since 1980.
Lubrication: 600 W steam cylinder oil
Displacement lubricator is not supplied with the pump but can be purchased separately.
*** Price $910.00 Australian Dollars ***
Effective January 2015
