Single Cylinder 1.125" scale Pumps

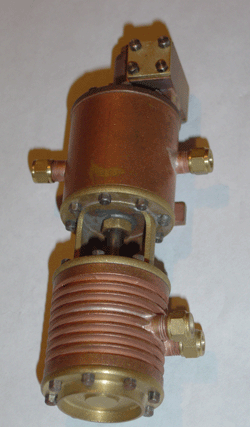

1.125" scale pump

Model of a Westinghouse 10"(254mm) x 10.625" (270mm) air compressor.

Overall height 4" (101.6mm)
Maximum body diameter 1.25" (31.75mm)
Steam cylinder diameter 0.75"(19.05mm)
Water cylinder diameter 0.5" (12.7mm)
Stroke 1" (25.4mm)
Working pressure range 50-120 psi

 Complete with fittings for 5/32" diameter copper        pipe.

 Fully operational

 Self starting

 Reliable

Lubrication: 600W steam cylinder oil or equivalent

 Lubricator is not supplied with the pump but can be purchased separately.

These pumps have successfuly been in production since 1978

*** Price $879 AUD ***

Postage within Australia $25 AUD

Effective January 2015

email: warrick_sandberg@hotmail.com

Phone (02) 4751 1671

Mobile 0412 428 605
